Memo:

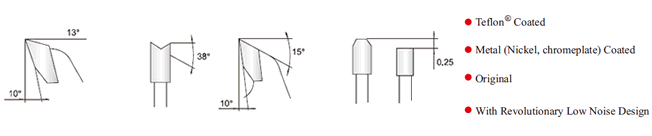

Two tooth shape designed, according your machine, please choose the best one.
Use for cutting laminated panels on one side (with another scoring blade), and
double side, MDF panels, black boards, pl-ywood and and so on.
TYPE A:SHARP TEETH | |||||
Items No | D(mm) | B/b(mm) | Z | d(mm) | Price (usd) |
SLMSP18040 | 180 | 2.6/1.8 | 40 | 15.875 | |
SLMSP20064 | 200 | 3.2/2.2 | 64 | 30 | |
SLMSP25080 | 250 | 3.2/2.2 | 80 | 30 | |
SLMSP20096 | 200 | 3.2/2.2 | 96 | 30 | |
SLMSP35010 | 350 | 3.5/2.6 | 108 | 30 | |
SLMSP40012 | 400 | 3.8/3.0 | 120 | 30 | |
TYPE B: TRAPEZE TEETH | |||||
SLMTP25080 | 250 | 3.2/2.2 | 80 | 30 | |
SLMTP30096 | 300 | 3.2/2.2 | 96 | 30 | |
SLMTP35010 | 350 | 3.2/2.2 | 108 | 30 | |
SLMTP40012 | 350 | 3.8/3.0 | 108 | 30 |
