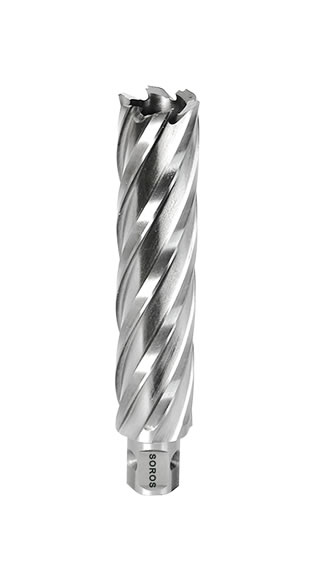

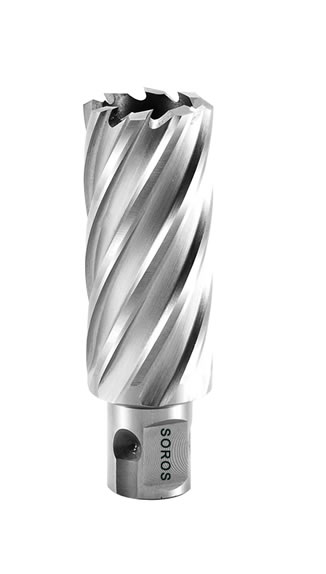

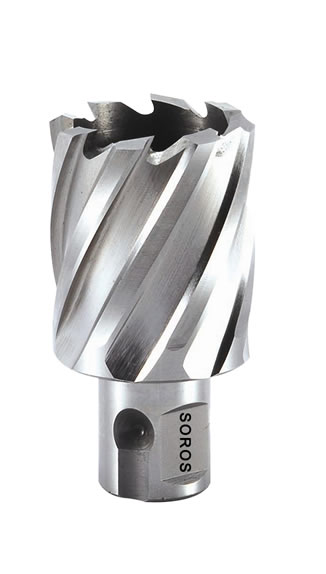

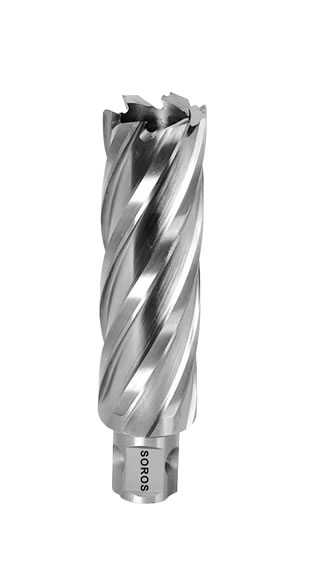

1.Universal shank for various magentic drills

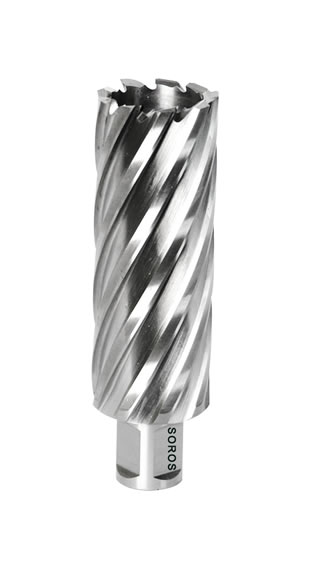

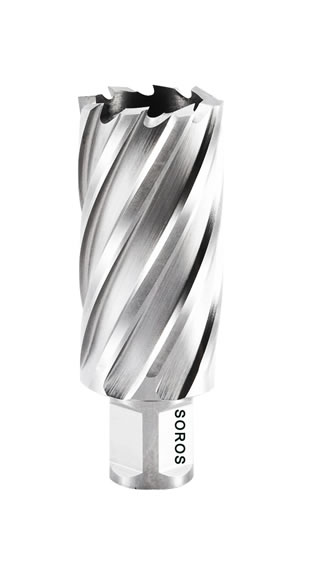

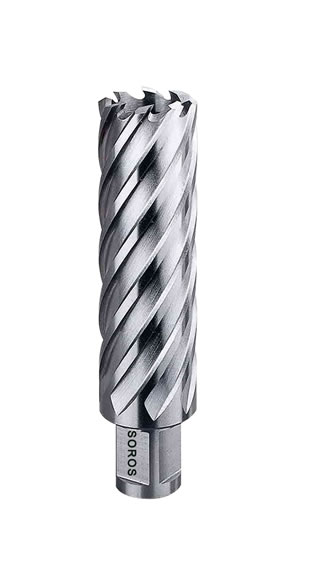

2.Weldon shank , with more stable clamping for stable cutting and finish of holes
3.75mm and 100mm D.O.C hole cutter’s diameter start from 18mm.
4.Made of super tough high speed steel with mulit-cut geometry for ply-cutting and lower feiction to reach better performance of endurance and removal of chips
5.Applicable to hole cutting and process of annular groove on various magnetic drills and press.Fitting arbors with 19.05 bore as well as quick-change system, like Alfra , Hougen , Jancy , Euroboor , BDS , Ruko
Items No | Size(mm) | Size(inch) | Qty/C | Gw/C | Nw/C | L(cm) | W(cm) | H(cm) | Price (usd) |
SHHSS012 | 12 | 15/32 | 80 | 15 | 14 | 36 | 32 | 34 | |
SHHSS013 | 13 | 1/2 | 80 | 15 | 14 | 36 | 32 | 34 | |
SHHSS014 | 14 | 9/16 | 80 | 15 | 14 | 36 | 32 | 34 | |
SHHSS015 | 15 | 19/32 | 80 | 17 | 16 | 36 | 32 | 34 | |
SHHSS016 | 16 | 5/8 | 80 | 17 | 16 | 36 | 32 | 34 | |
SHHSS017 | 17 | 11/16 | 80 | 18 | 17 | 36 | 32 | 34 | |
SHHSS018 | 18 | 23/32 | 80 | 18 | 17 | 36 | 32 | 34 | |
SHHSS019 | 19 | 3/4 | 80 | 19 | 18 | 36 | 32 | 34 | |
SHHSS020 | 20 | 25/32 | 80 | 19 | 18 | 36 | 32 | 34 | |
SHHSS021 | 21 | 13/16 | 60 | 17 | 16 | 42 | 26 | 30 | |
SHHSS022 | 22 | 7/8 | 60 | 18 | 17 | 42 | 26 | 30 | |
SHHSS023 | 23 | 29/32 | 60 | 18 | 17 | 42 | 26 | 30 | |
SHHSS024 | 24 | 15/16 | 60 | 18 | 17 | 42 | 26 | 30 | |
SHHSS025 | 25 | 1 | 60 | 19 | 18 | 42 | 26 | 30 | |
SHHSS026 | 26 | 1-1/32 | 40 | 15 | 14 | 46 | 29 | 23 | |
SHHSS028 | 28 | 1-1/8 | 40 | 16 | 15 | 46 | 29 | 23 | |
SHHSS030 | 30 | 1-3/16 | 40 | 17 | 16 | 46 | 29 | 23 | |
SHHSS032 | 32 | 1-1/4 | 40 | 17 | 16 | 46 | 29 | 23 | |
SHHSS035 | 35 | 1-3/8 | 40 | 18 | 17 | 46 | 29 | 23 | |
SHHSS036 | 36 | 1-13/32 | 30 | 14 | 13 | 43 | 27 | 23 | |
SHHSS038 | 38 | 1-1/2 | 30 | 15 | 14 | 43 | 27 | 23 | |
SHHSS040 | 40 | 1-9/16 | 30 | 16 | 15 | 43 | 27 | 23 | |
SHHSS042 | 42 | 1-5/8 | 30 | 17 | 16 | 43 | 27 | 23 | |
SHHSS045 | 45 | 1-25/32 | 20 | 14 | 13 | 40 | 31 | 23 | |
SHHSS046 | 46 | 1-13/16 | 20 | 14 | 13 | 40 | 31 | 23 | |
SHHSS050 | 50 | 1-31/32 | 20 | 15 | 14 | 40 | 31 | 23 | |
SHHSS051 | 51 | 2 | 20 | 16 | 15 | 40 | 31 | 23 | |
SHHSS052 | 52 | 2-1/16 | 20 | 17 | 16 | 40 | 31 | 23 | |
SHHSS053 | 53 | 2-3/32 | 20 | 17 | 16 | 40 | 31 | 23 | |
SHHSS054 | 54 | 2-1/8 | 20 | 17 | 16 | 40 | 40 | 20 | |
SHHSS055 | 55 | 2-3/16 | 20 | 18 | 17 | 40 | 40 | 20 | |
SHHSS057 | 57 | 2-1/4 | 20 | 18 | 17 | 40 | 40 | 20 | |
SHHSS060 | 60 | 2-3/8 | 20 | 18 | 17 | 40 | 40 | 20 | |
SHHSS064 | 64 | 2-1/2 | 16 | 18 | 17 | 40 | 40 | 20 | |
SHHSS065 | 65 | 2-9/16 | 16 | 18 | 17 | 40 | 40 | 20 | |
Big size only have 25mm,35mm,50mm cutting length. | |||||||||
SHHSS070 | 70 | 2-3/4 | 16 | 20 | 19 | 40 | 40 | 20 | |
SHHSS075 | 75 | 2-15/16 | 16 | 17 | 16 | 40 | 40 | 20 | |
SHHSS076 | 76 | 3 | 16 | 17 | 16 | 40 | 40 | 20 | |
SHHSS079 | 79 | 3-1/8 | 16 | 18 | 17 | 40 | 40 | 20 | |
SHHSS080 | 80 | 3-1/8 | 16 | 18 | 17 | 40 | 40 | 20 | |
SHHSS085 | 85 | 3-3/8 | 16 | 19 | 18 | 40 | 40 | 20 | |
SHHSS090 | 90 | 3-1/2 | 10 | 17 | 16 | 40 | 40 | 20 | |
SHHSS095 | 95 | 3-3/4 | 10 | 18 | 17 | 40 | 40 | 20 | |
SHHSS100 | 100 | 4 | 10 | 19 | 18 | 40 | 40 | 20 |
