1/8-1/2,13step,Ti plate

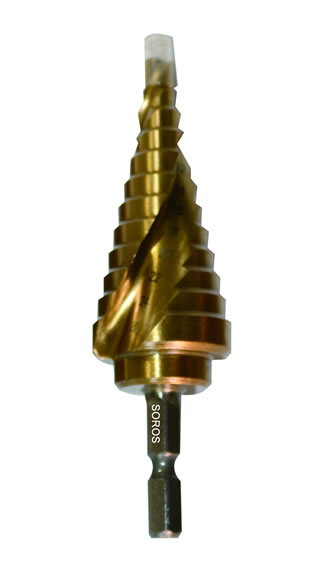

4-26mm,12step,spiral flute,Ti plate,spiral flute
3pcs set red case

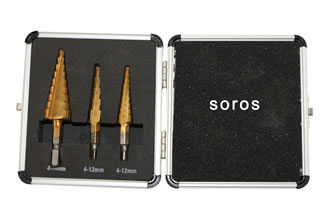

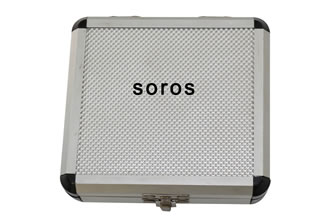

3pcs set Al case back
| Items No | Size(mm) | Steps | Shank Dia(mm) | Total Length(mm) | Qty/C | Gw/C | Nw/C | L(cm) | W(cm) | H(cm) |
| SS412056 | 4.0-12.00 | 5 | 6 | 65 | 320 | 10 | 9 | 36 | 26 | 20 |
| SS412096 | 4.0-12.00 | 9 | 6 | 65 | 320 | 10 | 9 | 36 | 26 | 20 |
| SS420098 | 4.0-20.00 | 9 | 8 | 75 | 144 | 10 | 9 | 36 | 26 | 20 |

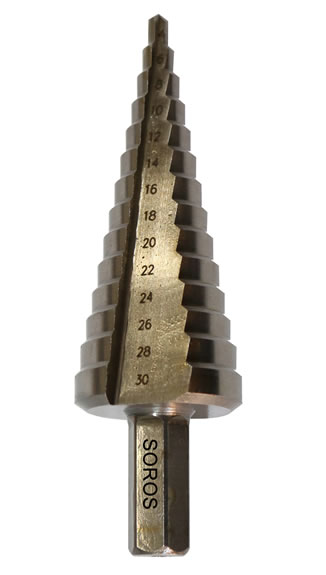

| SS430014 | 4.0-30.00 | 14 | 10 | 100 | 64 | 11 | 10 | 36 | 26 | 20 |
| SS538012 | 5.0-38.00 | 12 | 10 | 100 | 64 | 15 | 14 | 36 | 26 | 20 |
| SS626758 | 6.0-26.75 | 8 | 10 | 75 | 64 | 7 | 6 | 36 | 26 | 20 |
| SS439013 | 4.0-39.00 | 13 | 10 | 107 | 64 | 16 | 15 | 36 | 26 | 20 |
| SS632008 | 6.0-32.00 | 8 | 10 | 75 | 64 | 11 | 10 | 36 | 26 | 20 |
| SS528007 | 5.0-28.00 | 7 | 10 | 69 | 64 | 9 | 8 | 36 | 26 | 20 |
| SS630509 | 6.0-30.50 | 9 | 10 | 50 | 64 | 8 | 7 | 36 | 26 | 20 |
| SS637012 | 6.0-37.00 | 12 | 10 | 100 | 64 | 15 | 14 | 36 | 26 | 20 |
| SS481065 | 4.8-10.65 | 5 | 6 | 54 | 320 | 9 | 8 | 36 | 26 | 20 |
| SS625007 | 6.0-25.00 | 7 | 10 | 65 | 64 | 7 | 6 | 36 | 26 | 20 |
| SS632009 | 6.0-32.00 | 9 | 10 | 76 | 64 | 10 | 9 | 36 | 26 | 20 |
| SS640016 | 6.0-40.00 | 16 | 13 | 105 | 64 | 18 | 17 | 36 | 26 | 20 |
| SS533059 | 5.3-30.50 | 9 | 10 | 79 | 64 | 8 | 7 | 36 | 26 | 20 |
| SS653259 | 6.5-32.50 | 9 | 10 | 79 | 64 | 8 | 7 | 36 | 26 | 20 |
| SS533850 | 5.3-38.50 | 11 | 10 | 96 | 64 | 15 | 14 | 36 | 26 | 20 |
| SS654050 | 6.5-40.50 | 11 | 10 | 96 | 64 | 16 | 15 | 36 | 26 | 20 |
| Step drills with 3 straight cutting Edges | 36 | 26 | 20 | |||||||
| Items No | Size(mm) | Steps | Shank Dia(mm) | Total Length(mm) | Qty/C | Gw/C | Nw/C | L(cm) | W(cm) | H(cm) |
| SS102011 | 10-20 | 11 | 10 | 144 | 12 | 11 | 36 | 26 | 20 | |
| SS203011 | 20-30 | 11 | 10 | 64 | 11 | 10 | 36 | 26 | 20 | |
| SS304011 | 30-40 | 11 | 12 | 64 | 17 | 16 | 36 | 26 | 20 | |
| Step drills with 4 straight cutting Edges | 36 | 26 | 20 | |||||||
| Items No | Size(mm) | Steps | Shank Dia(mm) | Total Length(mm) | Qty/C | Gw/C | Nw/C | L(cm) | W(cm) | H(cm) |
| SS114612 | 11.4-26.75 | 6 | 12 | 64 | 8 | 7 | 36 | 26 | 20 | |
| SS125305 | 12.5-30.5 | 7 | 12 | 64 | 11 | 10 | 36 | 26 | 20 | |

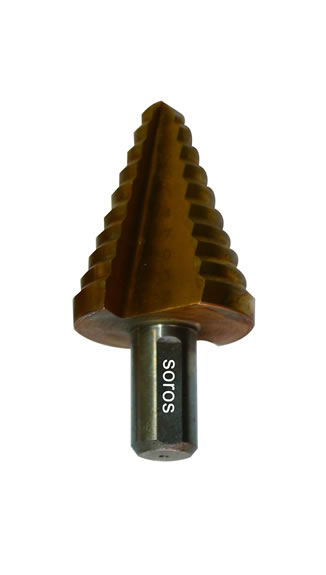

| SS936010 | 9-36 | 10 | 12 | 64 | 16 | 15 | 36 | 26 | 20 | |
| INCH | 36 | 26 | 20 | |||||||

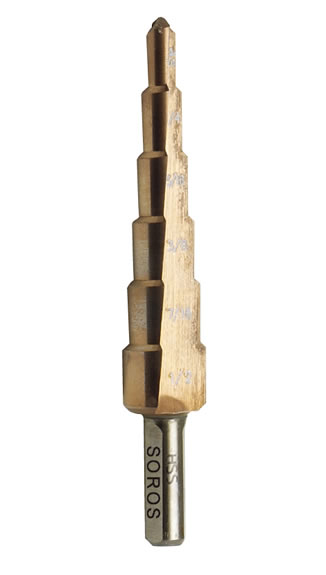

| SS316126 | 3/16-1/2 | 6 | 1/4 | 3-1/8 | 320 | 11 | 10 | 36 | 26 | 20 |
| SS181213 | 1/8-1/2 | 13 | 1/4 | 3-1/8 | 320 | 11 | 10 | 36 | 26 | 20 |
| SS143409 | 1/4-3/4 | 9 | 3/8 | 2-3/4 | 144 | 9 | 8 | 36 | 26 | 20 |
| SS316078 | 3/16-7/8 | 12 | 3/8 | 3-1/4 | 144 | 11 | 10 | 36 | 26 | 20 |
| SS120109 | 1/2-1 | 9 | 3/8 | 3-1/4 | 64 | 16 | 15 | 36 | 26 | 20 |
| SS780138 | 7/8-1-3/8 | 5 | 3/8 | 3-1/4 | 64 | 14 | 13 | 36 | 26 | 20 |
| SS380122 | 3/8-1/2 | 2 | 1/4 | 1-7/8 | 320 | 11 | 10 | 36 | 26 | 20 |
