Memo:

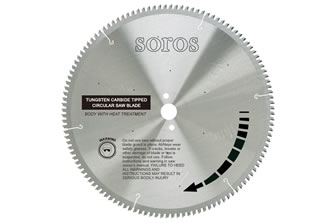

Use for cutting aluminium and other non-ferrous profiles with all thickness up to
5mm or10mm, the work piece must be properly clamped during cutting, two
pinholes acoording users requested.

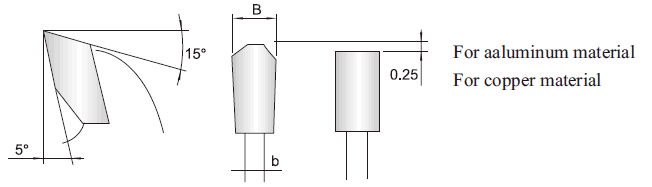

| Items No | D(mm) | B/b(mm) | Z | d(mm) | Price (usd) |
| SALUP11040 | 110 | 2.0/1.2 | 40 | 20 | |
| SALUP12540 | 125 | 2.0/1.2 | 40 | 20 | |
| SALUP15042 | 150 | 2.4/1.6 | 42 | 20 | |
| SALUP16052 | 160 | 2.6/1.8 | 52 | 30 | |
| SALUP18060 | 180 | 2.6/1.8 | 60 | 30 | |
| SALUP19060 | 190 | 2.6/1.8 | 60 | 30 | |
| SALUP20064 | 200 | 2.8/2.2 | 64 | 30 | |
| SALUP21664 | 216 | 2.8/2.2 | 64 | 30 | |
| SALUP23080 | 230 | 2.8/2.2 | 80 | 30 | |
| SALUP25080 | 250 | 3.2/2.2 | 80 | 30 | |
| SALUP25010 | 250 | 3.2/2.2 | 100 | 30 | |
| SALUP25012 | 250 | 3.2/2.2 | 120 | 30 | |
| SALUP30082 | 300 | 3.2/2.4 | 82 | 30 | |
| SALUP30096 | 300 | 3.2/2.4 | 96 | 30 | |
| SALUP30010 | 300 | 3.2/2.4 | 100 | 30 | |
| SALUP30012 | 300 | 3.2/2.4 | 120 | 30 | |
| SALUP35084 | 350 | 3.5/2.6 | 84 | 30 | |
| SALUP35010 | 350 | 3.5/2.6 | 100 | 30 | |
| SALP350108 | 350 | 3.5/2.6 | 108 | 32 | |
| SALUP35012 | 350 | 3.6/2.8 | 120 | 30 | |
| SALUP40010 | 400 | 3.6/2.8 | 100 | 30 | |
| SALUP40012 | 400 | 3.6/2.8 | 120 | 30 | |
| SALUP42012 | 420 | 4.0/3.2 | 128 | 32 | |
| SALUP45012 | 450 | 4.0/3.2 | 120 | 32 | |
| SALUP50013 | 500 | 4.0/3.2 | 130 | 32 |
