For cutting aluminum sheets. tubing extrusions and other non-ferrous metals such
as copper, brass, lead and magnesium.
For smooth cutting, use lots of lubricant and a clamping device.
Note: The material must be clamped firmly to the table on both sides during cutting
operation. The use coolant is very important.
ltem KAC2(N)-160 to KAC2(N)-235 has a diamond knockout.

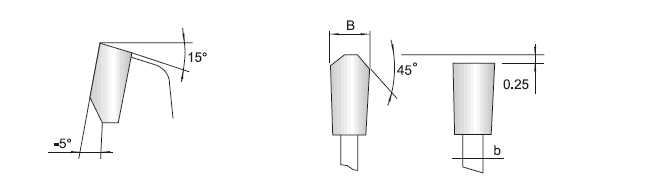

Items No | D(mm) | B/b(mm) | Z | d(mm) | Price (usd) |
SALUN16052 | 160 | 2.8/2.0 | 48 | 20 | |
SALUN18520 | 185 | 2.8/2.0 | 48 | 20 | |
SALUN18520 | 185 | 2.8/2.0 | 52 | 20 | |
SALUN19060 | 190 | 2.8/2.0 | 60 | 20 | |
SALUN20048 | 200 | 2.8/2.2 | 48 | 30 | |
SALUN20064 | 200 | 2.8/2.2 | 64 | 30 | |
SALUN21664 | 216 | 2.8/2.2 | 64 | 30 | |
SALUN23560 | 235 | 2.8/2.2 | 60 | 30 | |
SALUN23580 | 235 | 2.8/2.2 | 80 | 30 | |
SALUN25060 | 250 | 3.2/2.2 | 60 | 30 | |
SALUN25080 | 250 | 3.2/2.2 | 80 | 30 | |
SALUN25096 | 250 | 3.2/2.2 | 96 | 30 | |
SALUN25010 | 250 | 3.2/2.2 | 100 | 30 | |
SALUN30072 | 300 | 3.2/2.4 | 72 | 30 | |
SALUN30096 | 300 | 3.2/2.4 | 96 | 30 | |
SALUN30010 | 300 | 3.2/2.4 | 100 | 30 | |
SALUN35084 | 350 | 3.5/2.6 | 84 | 30 | |
SALUN35096 | 350 | 3.5/2.6 | 96 | 30 | |
SALUN35010 | 350 | 3.5/2.6 | 108 | 32 | |
SALUN35012 | 350 | 3.5/2.6 | 120 | 32 | |
SALUN40096 | 400 | 3.6/2.8 | 96 | 30 | |
SALUN40012 | 400 | 3.6/2.8 | 120 | 32 | |
SALUN45018 | 450 | 4.0/3.2 | 108 | 30 | |
SALUN45012 | 450 | 4.0/3.2 | 120 | 30 | |
SALUN45013 | 450 | 4.0/3.2 | 130 | 30 | |
SALUN50012 | 500 | 4.4/3.2 | 120 | 40 | |
SALUN50014 | 500 | 4.4/3.2 | 140 | 40 |
